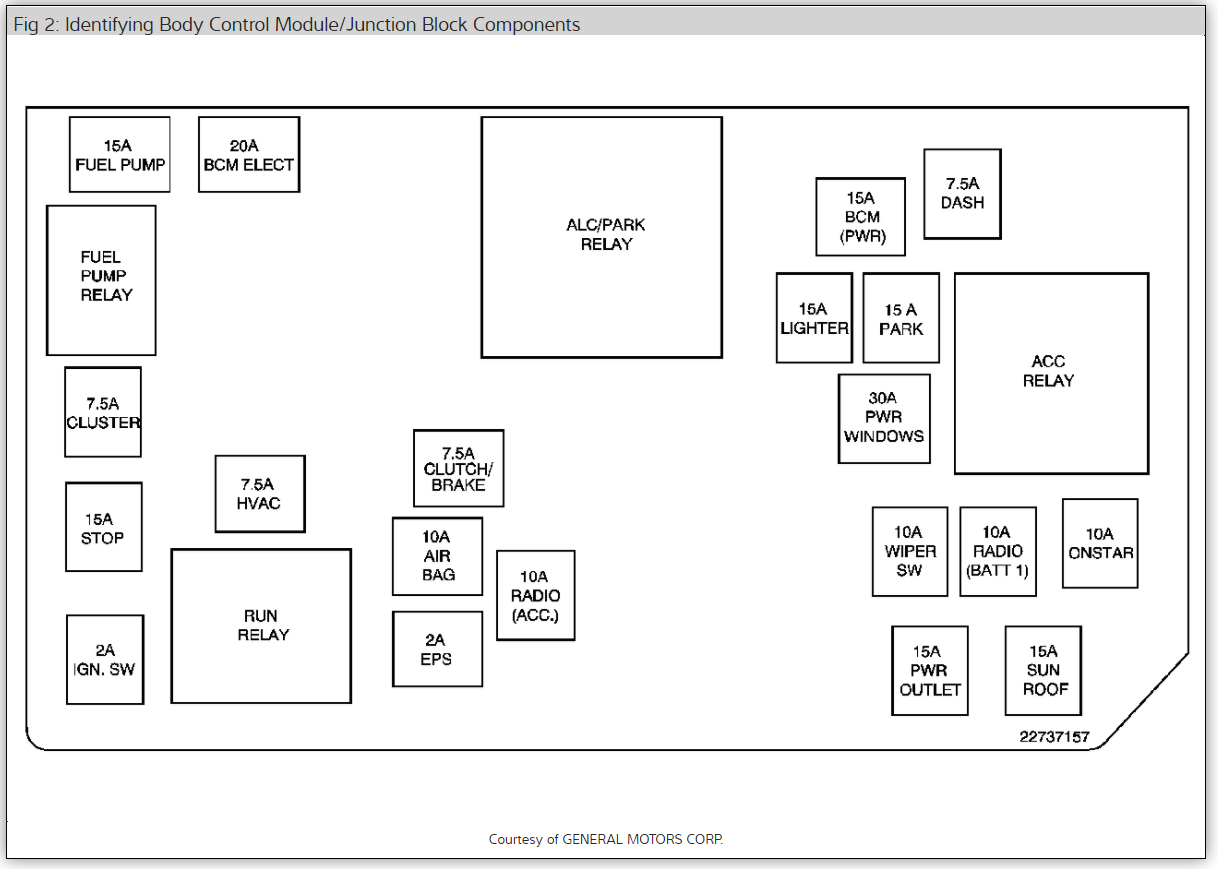

2005 Saturn Ion Fuse Box Diagram. Saturn Fuse Diagram Saturn ION (2005) - fuse box diagram Year of production: 2005 Floor Console Fuse Block Some fuses are in a fuse block on the driver's side of the floor console Fuses: Usage: FUEL PUMP: Fuel Pump Relay: BCM ELECT: Ignition Switch, Body Control Module (BCM)

This article includes fuse box diagrams for the Saturn Ion from 2003 to 2007 Fuse boxes change across years, pick the year of your vehicle: Fuse box diagrams 2007 Saturn Ion 2.4 LE5 Fuse box diagrams 2006 Saturn Ion

Saturn Ion Fuse Box Q&A for 20042007 Models

Fuses: Usage: FUEL PUMP: Fuel Pump Relay: BCM ELECT: Ignition Switch, Body Control Module (BCM) The compact car Saturn Ion was produced from 2002 to 2007 This Ion has 3 different fuse boxes: Floor Console Fuse Block diagram

Fuse box location on a 2005 Saturn Ion YouTube. [2005-2007] Engine Compartment (2.2L L4 Engine) Usage; 1: Engine Control Module, Transaxle Control Module: 2: Not Used: 3: Not Used: 4: In this article, you will find fuse box diagrams of Saturn Ion 2003, 2004, 2005, 2006 and 2007, get.

2005 Saturn Ion Fuse Box Diagram. Saturn ION (2005) - fuse box diagram Year of production: 2005 Floor Console Fuse Block Some fuses are in a fuse block on the driver's side of the floor console About; Contacts; 🔥Top Posts; Saturn ION (2005) Fuse Box Diagram
